Aesthlight

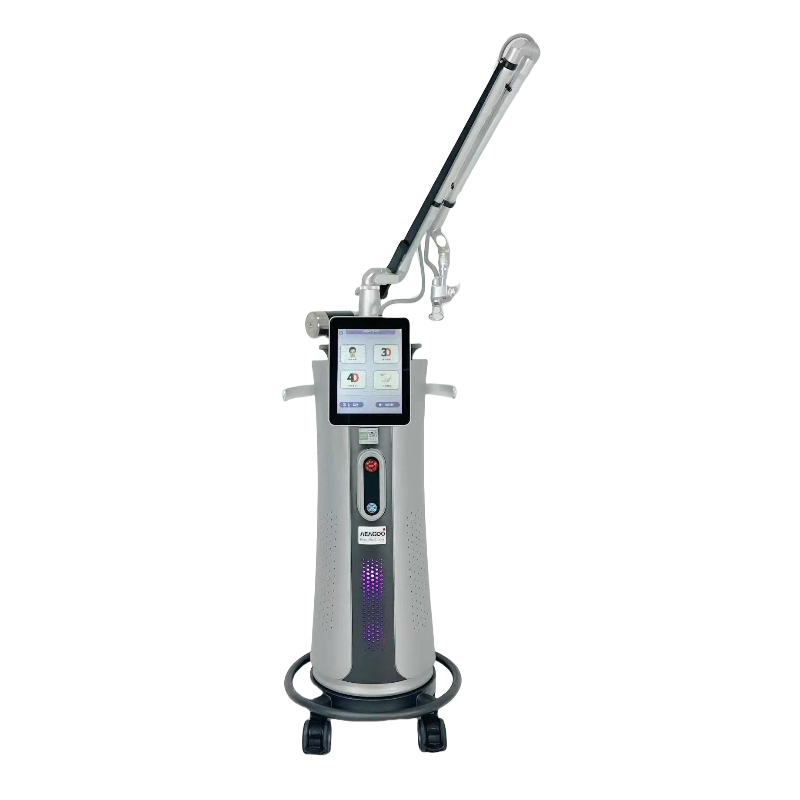

Aperture CO2 Fractional Laser
Aperture CO2 Fractional Laser
Product Principles
The principle of CO2 laser therapy is based on the absorption of CO2 laser energy by water molecules in tissues. When the laser beam is irradiated on the surface of the skin, water molecules absorb the energy of the laser, resulting in a thermal effect. This thermal energy can cause tissue evaporation, denaturation and coagulation, thereby achiev¬ing the purpose of treatment. During operation, CO2 laser can precisely control the depth and temperature of the treatment area, thereby protecting the surrounding normal tissue from damage. After laser treatment, it stimulates cell regeneration and collagen proliferation, promoting skin repair and recovery.
Product module
Scope of application
Technical Parameter
Wavelength | 10600nm |
Energy | 60W |
Working mode | Continuous / Pulse / Private |
Laser | RF Tube Lasers, Glass Tube Lasers (Optional) |
Scanning shape | square, rectangle, circle, triangle, hexagon, ellipse, straight line |
Hand tools | Fractional hand tools: round, square; Cutting hand tools: f=50mm, f= 100mm; Private hand tools: complete set |
Scanning area | 20*20mm (Adjustable) |
Residence time | 0. 1 ms-99.9ms |
Point spacing | 0. 2mm-2. 0mm |
Scan mode | Standard, random, center |
Scan times | 1-10 times adjustable |
Refrigeration system | Air-cooled + water-cooled |
Working Voltage | 220V 50HZ/ 110V 60HZ |
Screen | 10. 4 inch LCD all-in-one touch screen |
